Wireless ECG device for iOS with White Smart Recorder FDA approval

Short Description:

Wireless ecg for iOS is innovative generation in ecg field,compared with the classic ecg equipment,it is the first professional electro cardio gram (ECG) product developed on iOS portable device from Vales&Hills.Development in the demands of different markets,the functions of functions has been more and more perfect,and more and more users can be attracked by it.The model of the device is iCV200(BLE).Now these are many advantages for the device as below:

Send email to us

Product Detail

Product Tags

Description

Three significant features

A.Portablity
Small size, light weight ECG recorder, easy to carry to anywhere,no matter where you are.
B.Rapidity
Rapid acquisition via BLE 4.0(now update to 5.0 version), 10 seconds to arrive at diagnostic conclusion
C.Accuracy
Highly 98% accuracy of automatic diagnosis certified by CSE.These the basic of many professional clinic researches.

The Technical specification of wireless ecg device iCV200(BLE)

Sampling Rate	A/D:24K SPS/Ch
Sampling Rate	Recording:1K SPS/Ch
Quantization Precision	A/D:24 Bits
Quantization Precision	Recording:16 Bits
Resolution	0.4uV
Common Mode Rejection	>110dB
Input Impedance	>20M
Frequency Response	0.05-250Hz(±3bB)
Time Constant	>3.2Sec
Maximum Electrode Potential	±300mV DC
Dynamic Range	±15mV
Defibrillation Project	Build-in
Communication Way	Bluetooth
Power Suppy	2xAA Batteries

The usage of device to software

A,Download software app freely in iOS application
iCV200(BLE) ECG Systems has its software, named vhECG Pro, running on iPad or iPhone approved by Apple. The vhECG Pro can be downloaded from Apple App Store for free. Instructions for Free Download are showed as below:
Step 1. Entry the APP store of your iPad/iPad-mini/iPhone;
Step 2. Search “vhecg pro”;
Step 3. Download the software of “vhecg pro”, then install it by operational guide.
B,Open Bluetooth(device and software and application)
C,Quick connection and refer to the relative SN of box,also in software.

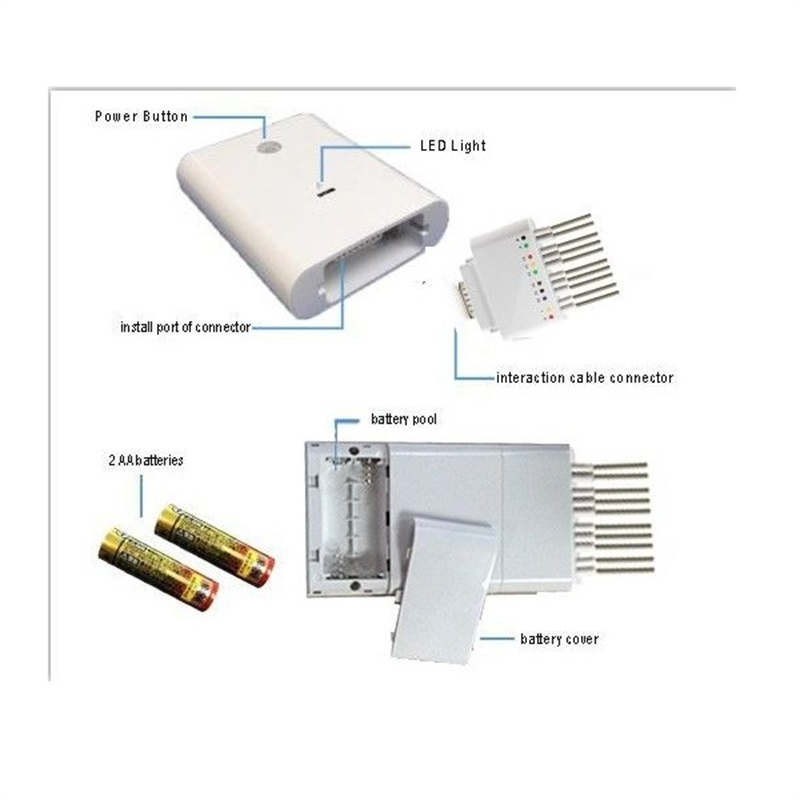

The structure chart of wireless ecg device for iOS

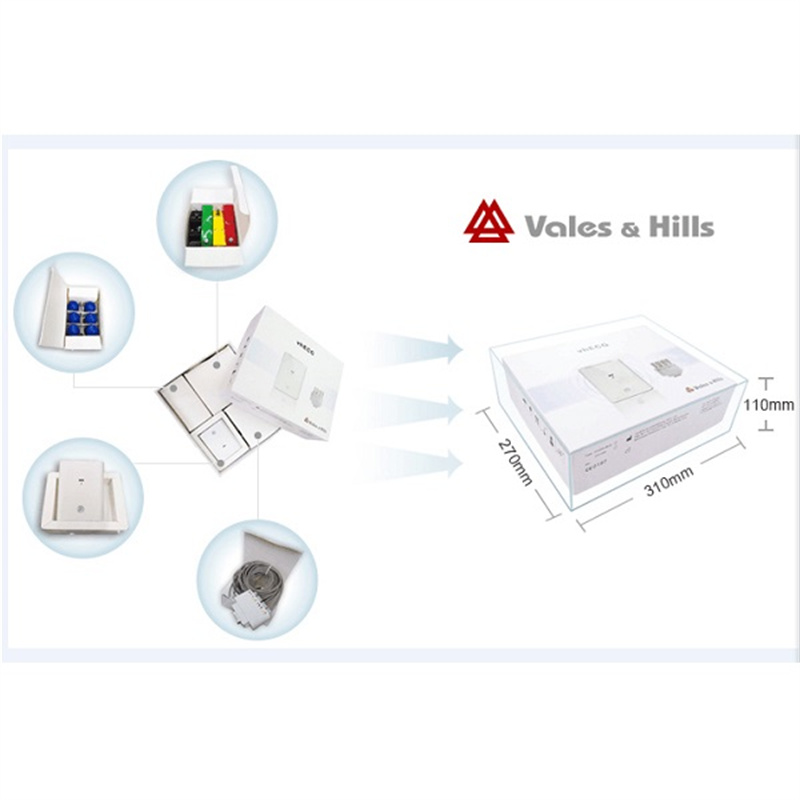

The package of one unit

Company Service for this device:

Product Service	–Multi options can be chosen for the devices.–Traning online & technicians supports.–CE,ISO,FDA and CO so on can be provided to our customers.–High quality and competitive price
After-sales Services	–one-year guarantee for the whole units–provide control remotely service online if need at any time–ship out within 3 days afer the payment arrival
