Introduction
A device might be labeled “12-lead,” but it can still suffer from missed beats, noise interference, or on-site failures. Taking the iCV200—our portable Android Bluetooth ECG device—as an example, I will explain the five parameters that truly predict real-world performance to help you choose a genuinely excellent 12-lead ECG machine.
Spec 1: Is it Simultaneous 12-Channel?
For 12-lead ECG devices, the key distinction between models is simultaneous acquisition versus sequential acquisition.
- Simultaneous acquisition records all 12 leads at the exact same time. This is critical for accurate arrhythmia analysis and ST-segment diagnosis.
- Sequential acquisition uses only 1 to 3 physical channels, switching between leads over time. Although the final report displays 12 leads, they are not recorded simultaneously, which can lead to missed transient cardiac events.

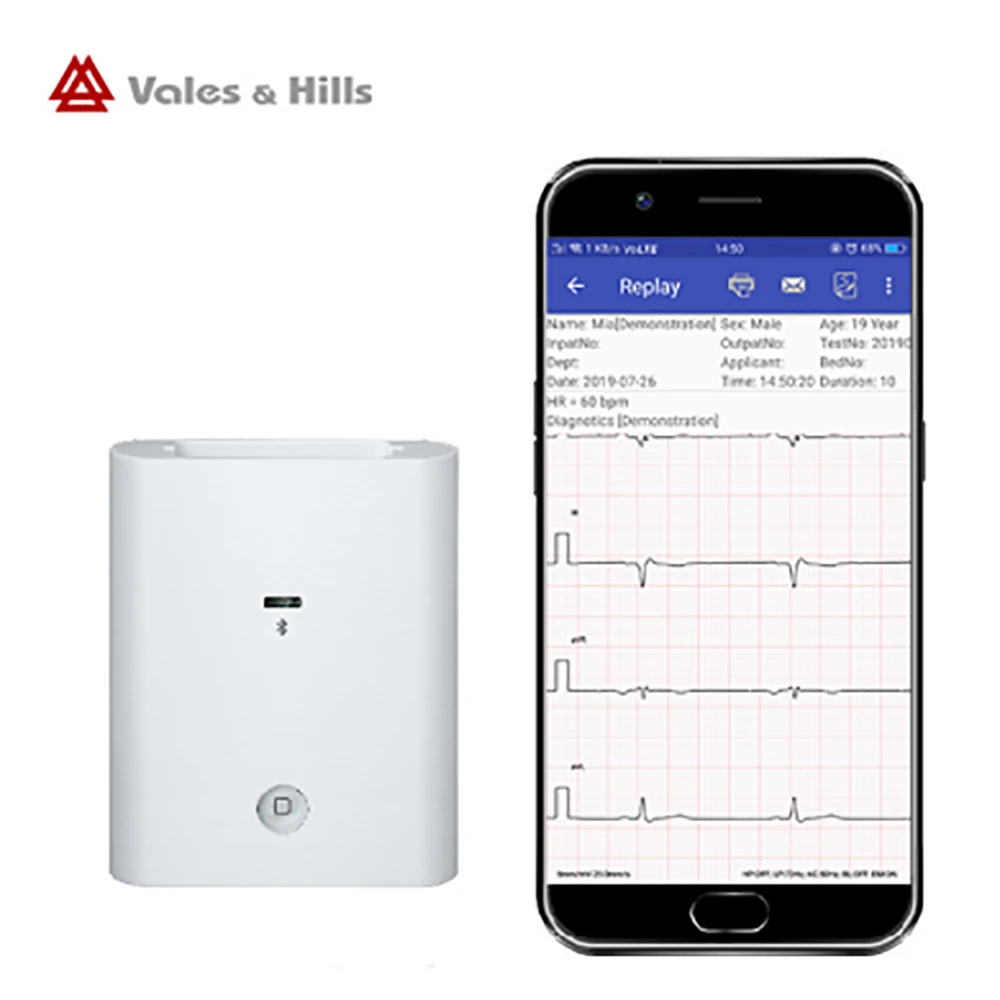

Take the iCV200 Android Bluetooth ECG machine as an example. It features simultaneous 12-channel acquisition, meaning no heartbeats are missed, and accurate ST-segment analysis is possible. Furthermore, its Bluetooth connectivity allows clinicians to place the tablet wherever needed. Running on a ECG software, it offers automatic diagnosis and analysis, helping medical staff generate reliable reports quickly.
Spec 2: Sampling Rate & Quantization Precision
Sampling rate and precision determine how finely the device captures the ECG signal. You need to look at both the A/D sampling rate and the recording sampling rate.
- A/D Sampling Rate: The raw data points collected by the hardware per second.
- Recording Sampling Rate: The actual amount of data saved. Some devices have a high A/D rate but a low recording rate, which reduces clinical value.
Quantization Precision is the smallest voltage change the device can detect, measured in microvolts (µV). Lower is better.
The iCV200 boasts an A/D sampling rate of up to 24,000 SPS/channel, far exceeding the 8,000 SPS/channel common in many entry-level devices. Its recording sampling rate is 1,000 SPS/channel, ensuring the saved data is as clear as the acquired data. Additionally, with a quantization precision of 0.9 µV (24-bit A/D), it can detect extremely weak cardiac signals that cheaper devices might miss.
Spec 3: CMRR & Input Impedance
ECG recording faces constant environmental interference.
- Common Mode Rejection Ratio (CMRR) measures the device’s ability to reject interference signals common to multiple electrodes. Measured in decibels (dB), the higher the CMRR, the cleaner the waveform.
- Input Impedance measures the device’s ability to acquire ECG signals without burdening the patient. Higher impedance results in better signal quality.
iCV200 Android ECG Device Specs:
- CMRR: >90dB
- Input Impedance: >20MΩ
Additionally:
- A frequency response of 0.05–250 Hz covers all clinically relevant ECG signals, from slow ST-segment changes to fast pacemaker pulses.
- A time constant of ≥3.2 seconds is sufficient to accurately reproduce the ST segment without distortion, which is vital for identifying signs of ischemia or myocardial infarction.
- A maximum electrode potential of ±300 mV handles strong voltage deviations caused by poor electrode contact or patient movement, avoiding flat-line waveforms.
- A dynamic range of ±15 mV allows for the simultaneous capture of tiny P-waves and large QRS complexes within the same beat without clipping.
These specifications ensure reliable acquisition in complex environments like ERs, ambulances, or during stress tests.
Spec 4: Safety Protection & Certification
ECG devices are often used near defibrillators. Without proper protection, a defibrillator discharge could damage the device or endanger patient safety.
- Built-in defibrillation protection is a non-negotiable requirement.
The iCV200 is equipped with built-in defibrillation protection and CE certification, meeting EU safety, health, and environmental requirements—a basic threshold for B2B/B2C buyers to enter the market.
Spec 5: Power & Communication Method
Power source and communication methods directly impact the user experience.
- Power: The iCV200 is powered by 2 AA batteries. AA batteries are available at any convenience store and can be replaced immediately without downtime for charging. This is ideal for ambulances, home visits, and outdoor clinics.
- Communication: It uses Bluetooth. The device operates in standalone mode, requiring no data cables to connect to a PC.
The companion free aECG software runs on Android-based systems (e.g., Huawei Pad 2). Data display, emailing, and printing are all handled via the Android device. The entire system is smaller, more portable, and more flexible than traditional ECG machines or “PC + acquisition box + printer” all-in-one solutions.
Additional Features
Based on product information, the iCV200 also offers:
- Rapid ECG acquisition, emailing, and printing capabilities.
- Automatic measurement and diagnosis.
- Stable Bluetooth transmission.
- Patient data protection and security.
- Smart portable design.
- Network service support.
Standard Package Includes: ECG acquisition box, 10-lead cable, suction bulbs, limb clips, clip-style adapters, box cover, and packaging box.
FAQ
Q: Do you have a Minimum Order Quantity (MOQ) requirement?
A: Yes, there is an MOQ for all international orders. If you are looking to purchase small batches for resale, we recommend visiting our website for details.
Q: What payment methods do you accept?
A: You can pay via Bank T/T or L/C. We operate on a “payment before delivery” basis, or a 50% deposit with the balance paid before shipment.
Q: What is the product warranty policy?
A: We provide a warranty for materials and workmanship. We are committed to your satisfaction. Resolving customer issues and ensuring everyone is happy is our company culture, regardless of warranty status.
Summary
In short, these five parameters point to one conclusion: the iCV200 features simultaneous 12-channel acquisition, high sampling rates and precision, strong noise immunity, built-in safety protection, and flexible battery/Bluetooth operation. Other features include rapid acquisition, emailing, printing ，auto-interpretation&measurements, data security, and stable transmission. The standard package includes the ECG box, cables, electrodes, adapters, and a carrying case.If you are procuring 12-lead ECG devices for a hospital, clinic, or distribution network, please refer to the parameters above. Request the full technical datasheet, check the specs item by item, and make a smarter purchasing decision.
