Description
The model of Bluetooth stress ecg for windows is iCV1200.As a multi-function ECG Workstation, the iCV1200 ECG Systems increases the stress test function, it will give you a totally new feeling, which will help you work swiftly, diagnose accurately and get to a new high level of your career. The ECG Acquisition Systems can work smoothly interfacing with treadmill and ergometer.
Specification of wireless stress ecg device
| Frequency Response | 0.05-250Hz(±3dB) |
| Common Mode Rejection | >60dB |
| Input Impedance | >5MΩ |
| Polarity voltage | ±300mV |
| Current leak | < 20μA |
| Dimensions | 132L×75W×23H mm |
| Operation Temperature | 15℃~35℃ |
| Operation Humidity | <85% |

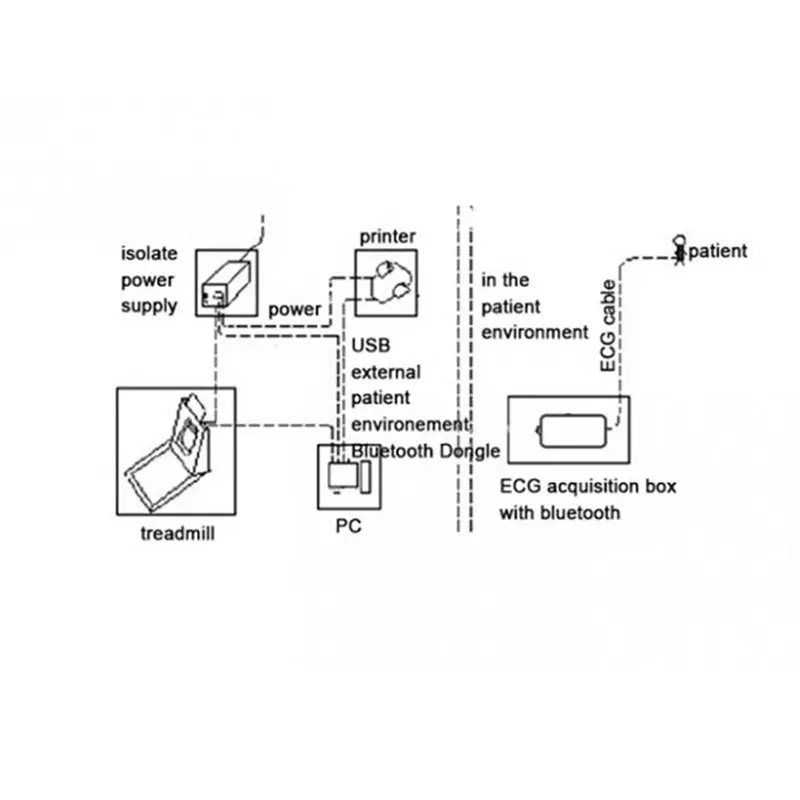

The workflow of wireless ecg device
When use the wireless stress ecg system as the workflow,the requirements in the system as below:
1,For PC (CPU Pentium Ⅳ or higher, Memory≥2G, Hard Disk≥250G, safety
requirements tested for compliance with EN 60950)
SVGA High resolution Monitor
Laser printer or Color Inkjet printer (optional)
Treadmill or Ergometer (safety requirements tested for compliance with 93/42/EEC, should have CE certificate)
ECG cable and electrodes (safety requirements tested for compliance with 93/42/EEC, should have CE certificate)
Operating system (Windows ME, Windows 2000 (SP 2 minimum), Windows XP Professional (SP 1 minimum), Win7/8/10/11)
requirements tested for compliance with EN 60950)
SVGA High resolution Monitor
Laser printer or Color Inkjet printer (optional)
Treadmill or Ergometer (safety requirements tested for compliance with 93/42/EEC, should have CE certificate)
ECG cable and electrodes (safety requirements tested for compliance with 93/42/EEC, should have CE certificate)
Operating system (Windows ME, Windows 2000 (SP 2 minimum), Windows XP Professional (SP 1 minimum), Win7/8/10/11)
The advanatges of the wireless stress ecg device,as below:
High resolution A/D:24K SPS/Ch, 24 bits
VH patent technology: Digital synchronous A/D
VH patent technology: Myoelectric filter based on ECG spectrum
VH proprietary algorithm: Minimum delay baseline wander eraser
Different filters selectable: LP, HP and artifact filters
Skin-electrode impedance measurement
Preset classical protocols and unlimited user difined protocols
Arrhythmia detec and live review
Various trends: tracking and compare
Soft anti-aliased ECG display
ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display
Rehabilitation mode:Cardiac function recovery protocols
Independent testing fo different treadmills and ergometers
VH patent technology: Digital synchronous A/D
VH patent technology: Myoelectric filter based on ECG spectrum
VH proprietary algorithm: Minimum delay baseline wander eraser
Different filters selectable: LP, HP and artifact filters
Skin-electrode impedance measurement
Preset classical protocols and unlimited user difined protocols
Arrhythmia detec and live review
Various trends: tracking and compare
Soft anti-aliased ECG display
ECG, BP, SO2, METS, MAX VO2, Distance and Time synchronous display
Rehabilitation mode:Cardiac function recovery protocols
Independent testing fo different treadmills and ergometers
The service provided in company:
1,pre-sales service
-inquiry and consultation support
-demo testing support
-sample order support
2,after-sales service
-technology support on line
-Notice at first time for software updating
-maintenance or replacement of device support
1,pre-sales service
-inquiry and consultation support
-demo testing support
-sample order support
2,after-sales service
-technology support on line
-Notice at first time for software updating
-maintenance or replacement of device support
