When testing ECG equipment, having a reliable signal source is important for checking how a device responds to different ECG waveforms and rhythms. An ECG Simulator provides simulated signals for equipment testing without requiring a real patient as the signal source.
For biomedical equipment manufacturers, researchers, service teams, and other professional users, portability can also make testing more convenient. A handheld simulator can be moved between different testing locations and used without a fixed power outlet.

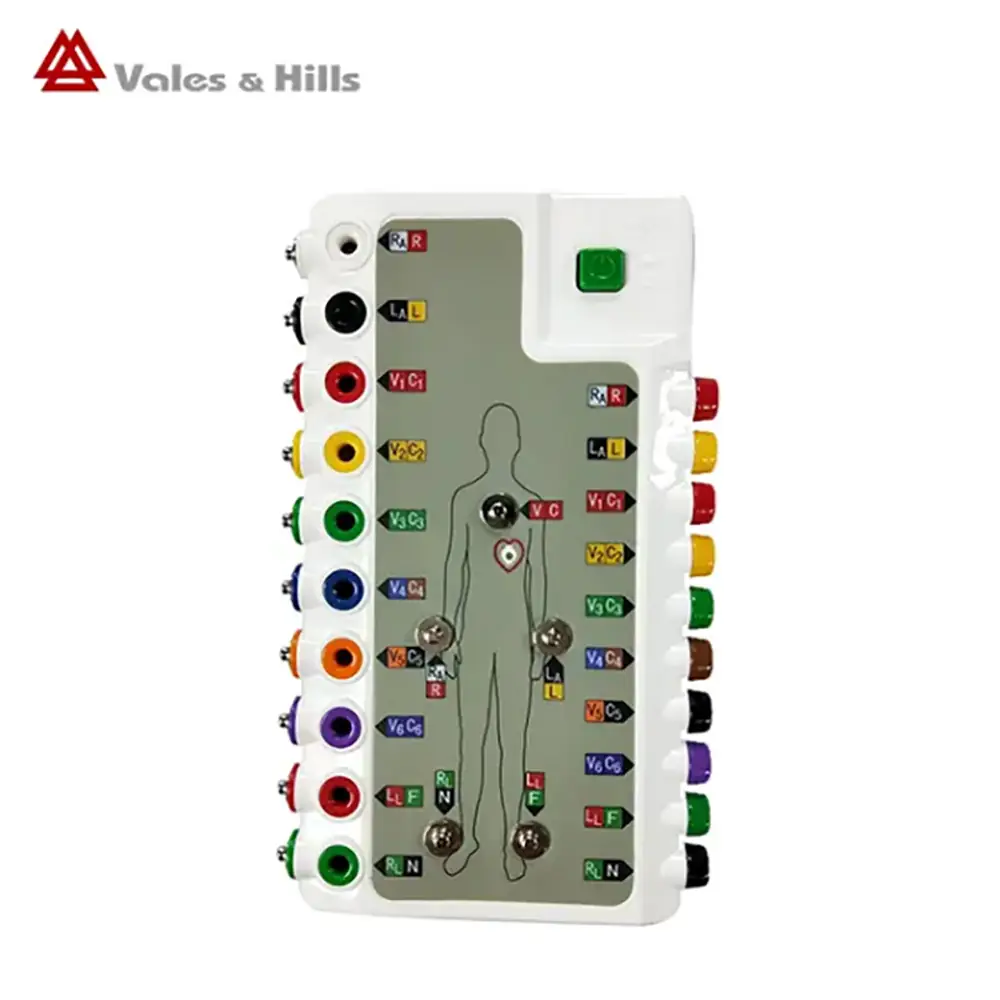

The PS420 is a portable ECG simulator designed for testing ECG equipment. It works with an Apple iOS application and uses Bluetooth to connect the simulator with the app. It can also output analog signals to multiple ECG equipment at the same time, making it suitable for different testing requirements.
What Is a Portable ECG Simulator?
An ECG simulator is an electronic device used to generate simulated electrical signals for testing ECG monitors, recorders, and other ECG equipment. Instead of connecting an ECG device to a patient, the simulator provides a known signal that the equipment can receive and display. This type of equipment is commonly used in medical equipment testing, service, maintenance, and development.
A portable ECG simulator provides the same basic testing purpose in a smaller, easier-to-carry format. This can be useful when ECG equipment needs to be tested in different locations rather than at a fixed test bench.
How Does an ECG Simulator Work?
The simulator generates electrical signals that can be sent to ECG equipment through compatible cables and connections. The ECG equipment receives these signals and processes them in the same way it would process an ECG input.
With the PS420, users can select different signal types through its iOS application. The simulator connects to the application via Bluetooth, while the output is connected to the ECG equipment being tested.
ECG Simulator vs. ECG Machine
An ECG machine is designed to acquire and record ECG signals from a person. An ECG simulator has a different purpose: it provides simulated signals for testing ECG equipment.
Therefore, an ECG simulator is not a replacement for an ECG machine. It is a testing tool used alongside ECG equipment to help professionals evaluate whether the equipment responds to different simulated signals.
Why Use a Portable ECG Simulator?
ECG equipment may need to be tested during development, servicing, research, or other professional workflows. A portable simulator can make this process more flexible because it does not need to remain in one fixed location.
ECG Equipment Testing Without a Patient
One important role of an ECG simulator is providing an electrical signal for equipment testing rather than requiring a patient as the signal source. This makes repeatable equipment testing more practical for technical and engineering teams.
For organizations working with multiple ECG devices, having a dedicated ECG Simulator Test solution can also simplify routine testing and troubleshooting workflows.
Flexible Testing in Different Locations
The PS420 is handheld and lightweight. It is powered by two AA batteries, so it can be used without a power outlet.
For B2B users who need to move between different testing areas, this portable design can be more convenient than equipment that depends on a fixed power source.
Key Features of a Portable ECG Simulator
When selecting an ECG simulator, buyers should focus on the signal types, connection options, software, and power requirements that match their testing work.
ECG Waveform and Rhythm Simulation
The signal options available from an ECG simulator directly affect the types of equipment tests that can be performed.
With the PS420 iOS application, users can select basic waveforms such as Sine Wave, Square Wave, and Triangle Wave, as well as Square Pulse and Triangle Pulse. It also supports ECG ST Wave, NSR Wave, Pacemaker Wave, and Arrhythmia.
The ability to simulate several types of signals makes the PS420 suitable for users who need more than a single default ECG output.
ECG Simulator Software and App
The PS420 uses an iOS application developed by Vales & Hills Biomedical Tech. Ltd. The application is available free of charge through the Apple App Store by searching for “ECG Simulator.”
The application provides control of the simulator’s available waveform options. This gives users a straightforward way to select the signal needed for a particular equipment test.
Bluetooth Connectivity
The PS420 connects to the iOS application via Bluetooth. This wireless connection allows the simulator and the iOS device to communicate without a physical connection between the two.
Multiple ECG Equipment Connections
One of the PS420’s practical features is its ability to output analog signals to multiple ECG equipment at the same time.
It can connect to:
- 2 ECG equipment with 10-lead banana cable
- 1 ECG equipment with 10-lead snap cable
- 1 ECG equipment with 5-lead snap cable
This provides different connection options for professional users working with ECG equipment that uses different cable configurations.
Battery-Powered Portable Design
The PS420 is powered by two AA batteries. This means users can operate the simulator without relying on a power outlet.
Combined with its handheld design, battery power makes the PS420 suitable for testing work that needs to be carried out away from a fixed workstation.
Applications of ECG Simulators
The specific application of an ECG simulator depends on the user’s testing requirements and the ECG equipment involved. In general, ECG simulators are used for testing and development of ECG monitors and other ECG equipment.
Testing ECG Machines and Monitoring Equipment
An ECG simulator can provide a repeatable signal for testing ECG equipment. Instead of relying on changing biological signals, technical personnel can select a specific simulated waveform and observe how the equipment responds.
Medical Equipment Development and Research
Researchers and medical equipment developers may need to work with different ECG signals during equipment development and testing.
Equipment Maintenance and Training
ECG simulators can also be used by biomedical equipment personnel for equipment testing and troubleshooting. Technical literature identifies ECG simulators as tools used by service and maintenance technicians when testing ECG monitors and other ECG equipment.
PS420 Portable ECG Simulator: An Example
The PS420 combines a handheld design with app-based operation and multiple ECG equipment connection options.
iOS ECG Simulator Software
The PS420 works with the ECG Simulator application developed by Vales & Hills Biomedical Tech. Ltd. on iOS. The application can be downloaded free of charge from the Apple App Store.
Multiple ECG Equipment Connections
The simulator can output analog signals to multiple ECG equipment at the same time. It supports two ECG equipment with 10-lead banana cables, one ECG equipment with a 10-lead snap cable, and one ECG equipment with a 5-lead snap cable.
ECG Waveform and Rhythm Simulation
Through the iOS application, the PS420 can output nine types of signals, including basic waveforms, ECG ST Wave, NSR Wave, Pacemaker Wave, and Arrhythmia.
Selected ECG waveforms can also be configured with noise and baseline noise.
Bluetooth Connection and Battery Power
The PS420 connects to the iOS application through Bluetooth. When the application is not being used, the simulator can output a default 80 BPM ECG signal directly.
The device is powered by two AA batteries, allowing it to operate without a power outlet.
Frequently Asked Questions About ECG Simulators
What is an ECG simulator used for?
An ECG simulator is used to provide simulated electrical signals for testing ECG monitors, recorders, and other ECG equipment. It helps technical users test equipment without using a real patient as the signal source.
Can an ECG simulator test different ECG machines?
It depends on the simulator’s supported connections. The PS420 supports 10-lead banana, 10-lead snap, and 5-lead snap connections and can output analog signals to multiple ECG equipment at the same time.
What types of ECG signals can an ECG simulator simulate?
The PS420 can output Sine Wave, Square Wave, Triangle Wave, Square Pulse, Triangle Pulse, ECG ST Wave, NSR Wave, Pacemaker Wave, and Arrhythmia through its iOS application.
Conclusion
A portable ECG simulator can be a practical testing tool for organizations that need to evaluate ECG equipment using repeatable simulated signals. When selecting one, the main points to consider are the available waveform and rhythm options, connection types, software compatibility, portability, and power supply.
The PS420 combines these features in a handheld device. It works with an iOS ECG Simulator Software application, connects through Bluetooth, supports multiple ECG equipment connections, provides several waveform and rhythm options, and can operate on two AA batteries. For professional users looking for a portable solution for ECG equipment testing, these features make the PS420 a practical option to consider. If you would like to learn more about the PS420 ECG simulator, please feel free to contact Vales & Hills.
